University of Calgary Monitors Arctic Sea Ice with CATALYST Professional Radar Suite

The University Of Calgary Uses The Catalyst Professional Radar Suite To Monitor Arctic Sea Ice.

June 24, 2021 By: CATALYST
Image of Calgary

Sea ice can be difficult to study because of the remote and hazardous locations in which is exists. Remotely sensed SAR data is one half of the equation. To complete the analysis, SAR processing software with the right algorithms are required.

Image of the Sar1

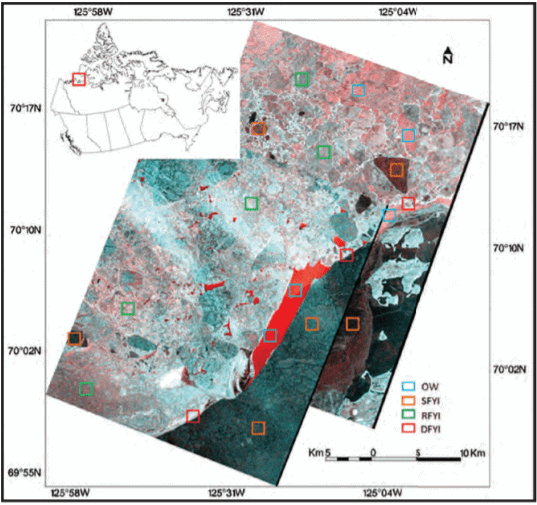

Polarimetric signatures of different ice types were analyzed at four radar incidence angles. The results were compared with previous studies to examine the variation of signatures with varying geophysical and SAR parameters. The study was further extended to investigate the potential of polarimetric parameters for ice type discrimination. This was done by analyzing the polarimetric signatures in one and twodimensional feature spaces and also through a combination of adopted classification algorithms.

    University of Calgary

    In this study, developed by PhD candidates at the University of Calgary, the classification potential of polarimetric parameters derived after Cloude–Pottier decomposition, Touzi decomposition, Freeman–Durden decomposition, normalized radar cross section measurements, phase differences, and statistical synthetic aperture radar correlation measures is evaluated by relating them to three pre-identifi ed sea ice types and wind-roughened open water.

      About Catalyst

      CATALYST is a PCI Geomatics brand, which has been introduced to put our leading edge technology into the hands of decision-makers.  We’re a startup – with hundreds of algorithms, scalable solutions, and decades of experience.

        Image of Calgary

        A combined approach that constitutes a visual inspection of estimated probability densities of the polarimetric parameters and quantitative analysis using supervised classifications is adopted. Polarimetric parameters are iteratively combined in pairs and triplets to test for their ice type discrimination potential. Sensitivity of polarimetric parameters to radar incidence angle is also examined.
